NEW QUESTION # 109

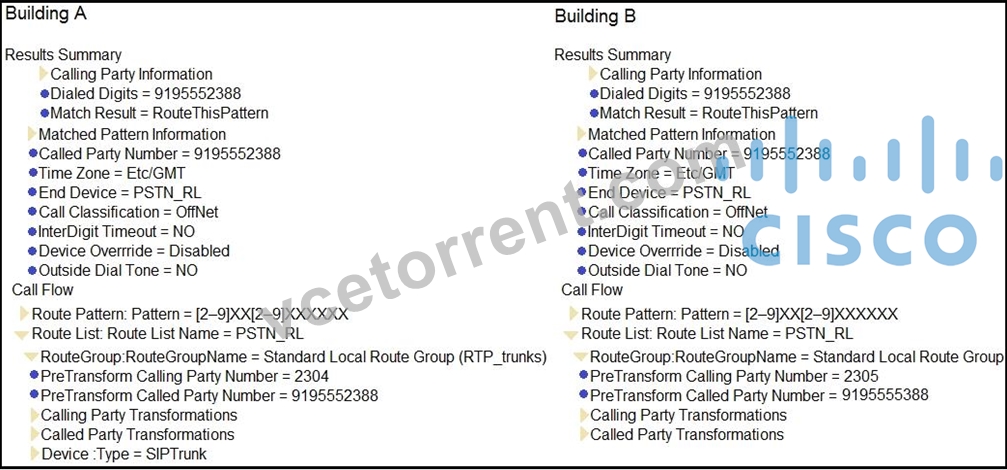

Refer to the exhibit. A standard local route group is configured for long-distance calls. Calls from building A succeed, but calls from building B fail. On the system. Each building has is own device pool. The DNA tool is used to test the configuration. How is this issue resolved?
- A. Add a sip trunk inside route group Standard Local Route Group.
- B. Change the partition of the route pattern
- C. Add a local route group on the device pool configuration.
- D. Modify the route pattern to add a prefix of 91
Answer: A
NEW QUESTION # 110

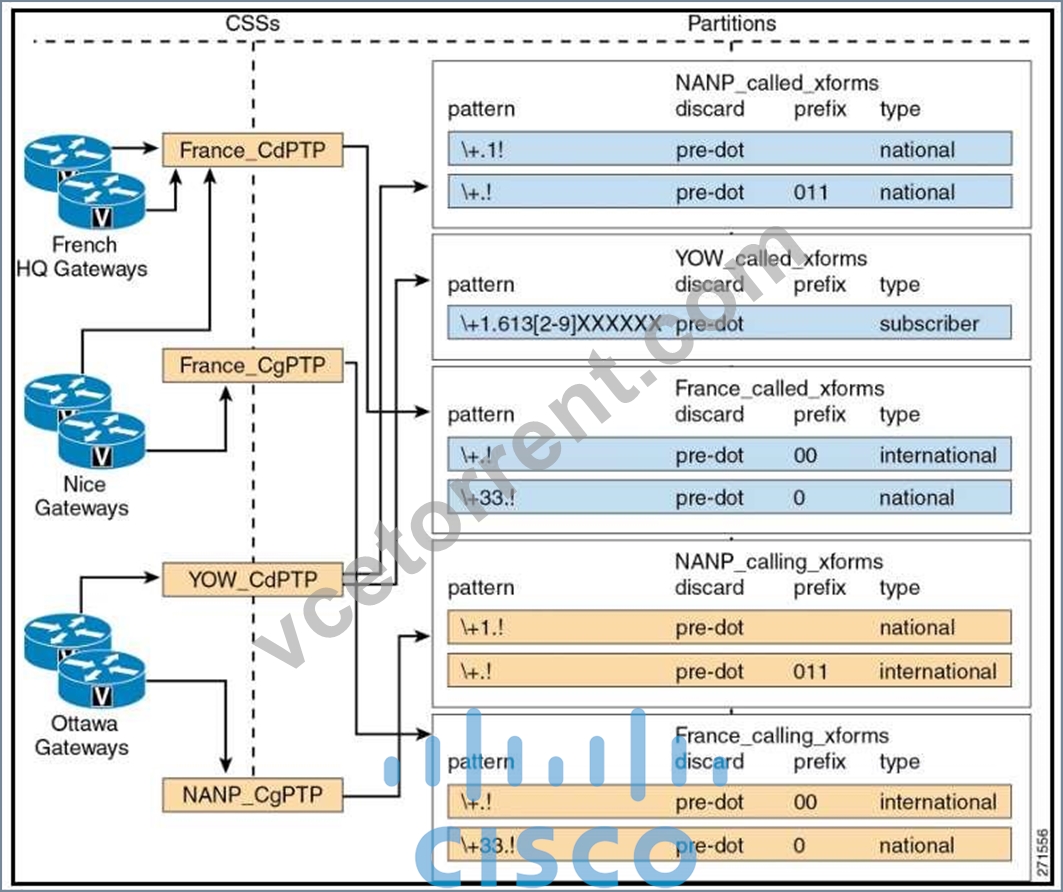

Refer to the exhibit. Within the North American Numbering Plan, gateways located in Ottawa, Canada and marked as "YOW" are assigned to the Calling Party Transformation CSS NANP_CgPTP, which contains partition NANP_calling_xforms. What is the calling-party number and the numbering type if the calling user
+1613-555-1234 dials the number?
- A. calling number 613-555-1234 and numbering type "subscriber"
- B. calling number 613-555-1234 and numbering type "national"
- C. calling number 011613-555-1234 and numbering type "international"
- D. calling number 011-1-613-555-1234 and numbering type "subscriber"
Answer: B
Explanation:
Section: Call Control and Dial Planning
Explanation/Reference:
NEW QUESTION # 111
Which call pickup feature allows users to pick up incoming calls in a group that is associated with their own group?
- A. BLF Call Pickup
- B. Group Call Pickup
- C. Directed Call Pickup
- D. Other Group Pickup
Answer: D
Explanation:
Section: Cisco Unified CM Call Control Features
Explanation/Reference: https://www.cisco.com/en/US/docs/voice_ip_comm/cucm/admin/4_1_3/ccmsys/ a07cpick.html#wp1022865
NEW QUESTION # 112
An engineer is configuring a call park feature in Cisco Unified Communications Manager Express. Which command does the engineer use to ensure that the call is reverted to the user after 60 seconds?
- A. R2(config-ephone-dn)#park reservation-group 1
- B. R2(config-ephone-dn)#park reservation-group 60
- C. R2(config-ephone-dn)#park-slot timeout 60 limit 2 recall alternate 3002
- D. R2(config-ephone-dn)#park-slot timeout 30 limit 2 recall alternate 3002
Answer: C
Explanation:
Section: Cisco Unified CM Call Control Features
NEW QUESTION # 113
Which two extended capabilities must be configured on dial peers for fast start-to-early media scenarios (H.323 to SIP interworking)? (Choose two.)
- A. VIDEO
- B. BFCP
- C. DTMF
- D. FAX
- E. AUDIO
Answer: B,C
NEW QUESTION # 114

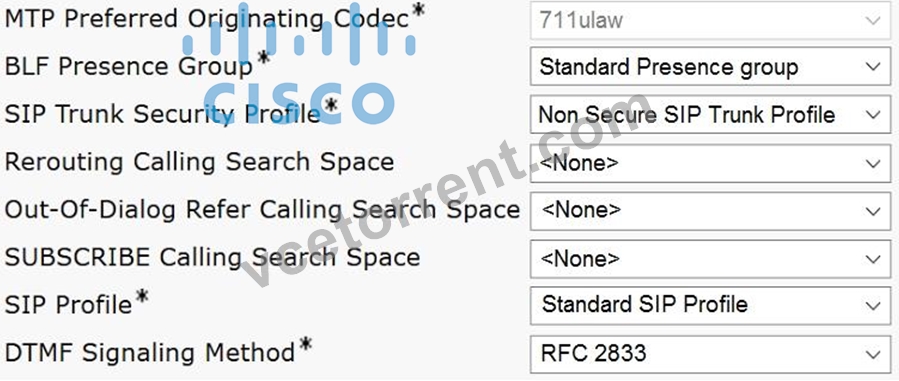

Refer to the exhibit. An administrator just implemented SIP trunking on their Cisco UCM and reports that calls using the SIP trunk are using Media Termination Point resources unnecessarily.
Which action resolves the issue?
- A. Change DTMF Signaling Method to "RFC 4733".
- B. Change to a range that does not result in MTP.
- C. Change DTMF Signaling Method to "No Preference".
- D. Disable SIP Rel1XX Options.
Answer: B
NEW QUESTION # 115
Refer to the exhibit. An engineer is troubleshooting an issue with the caller not hearing a PSTN announcement before the SIP call has completed setup.
How must the engineer resolve this issue using the reliable provisional response of the SIP?
- A. voice service voip
sip
send 180 sdp - B. sip-ua
disable-early-media 180 - C. voice service voip
sip
rehxx require 100rel - D. voice service voip
sip
no reMxx
Answer: C
NEW QUESTION # 116
If all patterns below are configured in Cisco Unified Communications Manager which would be used when dialing the pattern "123"?
- A. 12[2-5]
- B. 12!
- C. 12X (urgent priority set)
- D. 1XX (urgent Priority Set)
Answer: C
Explanation:
Section: Call Control and Dial Planning
NEW QUESTION # 117

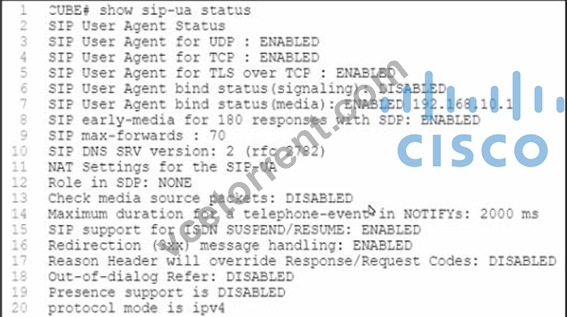

Refer to the exhibit.
Refer to the exhibit An engineer deploys a Cisco Unified Border Element for SIP trunk interconnection to an ITSP The engineer performs test calls but there is no audio when the called party picks up the phone. What must the engineer do to resolve the issue?
- A. Disable SIP early-media for 180 responses with SDP
- B. Disable SIP User Agent bind status (media).
- C. Enable Check media source packets.
- D. Decrease the SIP max-forwards value to 16.
Answer: D
NEW QUESTION # 118

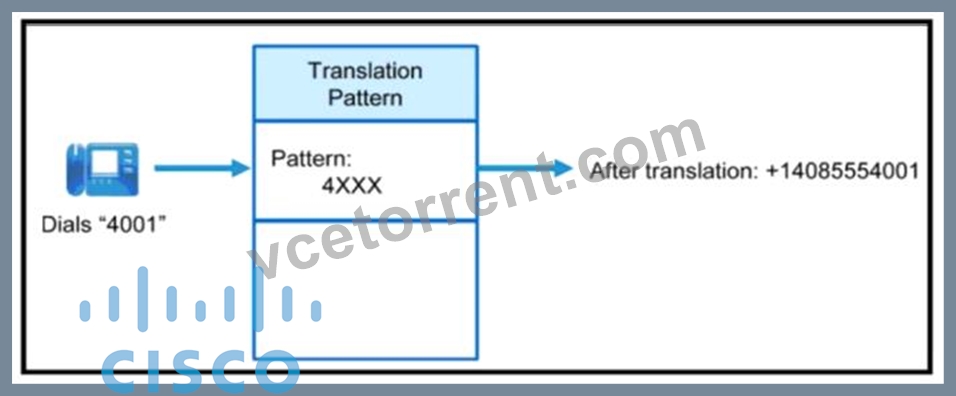

Refer to the exhibit.
A company needs to ensure that all calls are normalized to E164 format. Which configuration will ensure that the resulting digit string + 14085554001 is created and will be routed to the E.164 routing schema?
- A. Calling Party Transformation Mask of +14085554XXX
- B. Called Party Transformation Mask of + 14085554XXX
- C. Calling Party Transformation Mask of +1408555XXXX
- D. Called Party Transformation Mask of + 1408555[35)XXX
Answer: B
NEW QUESTION # 119
A company was looking at the IT charges and saw many long-distance and international calls primarily to sites in North America and around the world. The administrator wants to optimize the PSTN expense. Which dial plan configuration reduces PSTN connectivity charges by using the IP network to bring the egress point to the PSTN as close as possible to the called number?
- A. tail end hop off
- B. translation patterns
- C. dial rules
- D. client matter codes
Answer: A
NEW QUESTION # 120

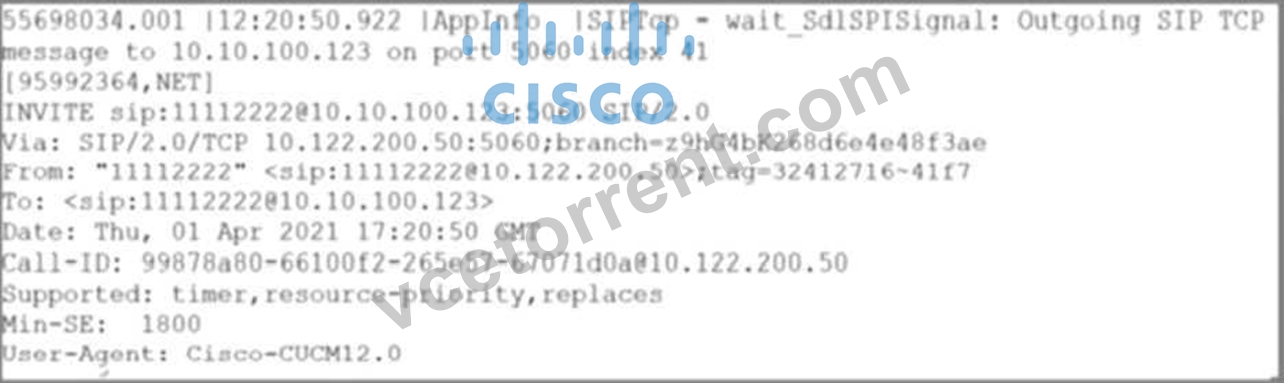

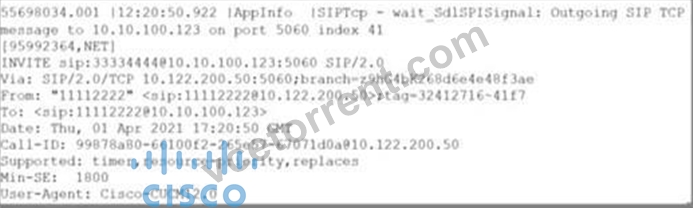

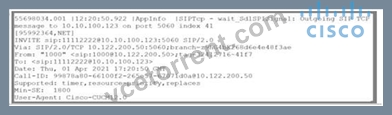

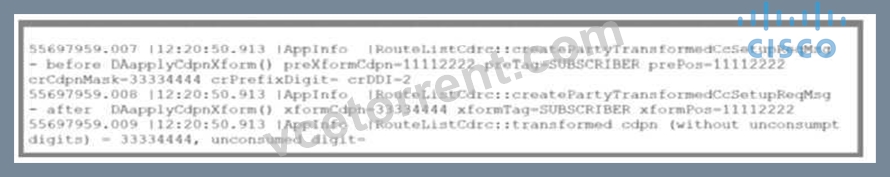

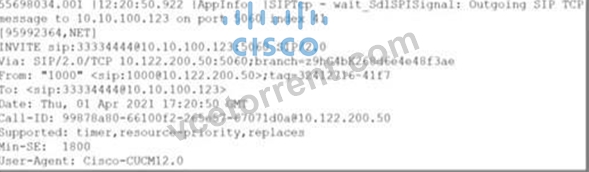

Refer to the exhibit. Which INVITE is sent to 10.10.100.123 as a result of this log?
- A.
- B.
- C.
- D.
Answer: C
NEW QUESTION # 121
Which two statements are correct with respect to the Client Matter Code setting in the route pattern configuration? (Choose two.)
- A. The Client Matter Code feature does support overlap sending because the Cisco Unified Communications Manager can determine when to prompt the user for the code.
- B. If you check the Allow Overlap Sending check box, the Require Client Matter Code check box becomes disabled.
- C. If you check the Allow Overlap Sending check box, you can also check the Require Client Matter Code check box.
- D. The Client Matter Code feature does not support overlap sending because the Cisco Unified CM cannot determine when to prompt the user for the code.
- E. The Client Matter Code has the option to configure Authorization Level such as in the Forced Authorization Code.
Answer: B,D
Explanation:
Reference:
https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/admin/10_0_1/ccmfeat/ CUCM_BK_F3AC1C0F_00_cucm-features-services-guide-100/CUCM_BK_F3AC1C0F_00_cucm-features- services-guide-100_chapter_010000.pdf
NEW QUESTION # 122
An engineer is configuring a Cisco UCM solution. The requirements state that some users in one location will receive calls from a number during work hours 09AM to 5PM, and another group will get the calls from the same number outside this defined timeslot. Users will also change the outgoing number when reaching out to customers based on the same time-of-day routing rules. Which feature is needed to allow for this type of configuration?
- A. CSS
- B. route lists
- C. route groups
- D. partitions
Answer: D
NEW QUESTION # 123
When configuring hunt groups, where does the administrator add the individual directory numbers that should be part of the group?
- A. route group
- B. hunt pilot
- C. hunt list
- D. line group
Answer: D
NEW QUESTION # 124
The administrator of ABC company is troubleshooting a one-way audio issue for a call that uses H.323 protocol (slow-start mode). The administrator requests that you provide the IP and port information of the Real-Time Transport Protocol traffic that had the one-way audio call.
You gather the H.225 and H.245 messages for one of the one-way audio calls. Where can you find the RTP IP and port information for both sides? (Note: This call flow has not invoked any media resources like MTP or transcoders).
- A. H.245 Open Logical Channel Ack
- B. H.245 Terminal Capability Set
- C. H.245 Open Logical Channel
- D. H.225 Connect
Answer: C
Explanation:
Section: Signaling and Media Protocols
Explanation/Reference: http://ccievoicehopeful.blogspot.com/2012/09/h323-notes.html
NEW QUESTION # 125
Which IOS command creates a SIP-enabled dial peer?
- A. dial peer voice 20 sip
- B. voice dial-peer 20 sip
- C. dial-peer voice 20 voip
- D. dial-peer voice 20 pots
Answer: C
Explanation:
https://www.ciscopress.com/articles/article.asp?p=664148&seqNum=6
NEW QUESTION # 126
Which services are needed to successfully implement Cisco Extension Mobility in a standalone Cisco Unified Communications Manager server?
- A. Cisco Extended Functions, Cisco Extension Mobility, and Cisco AXL Web Service
- B. Cisco TAPS Service, Cisco TFTP, and Cisco Extension Mobility
- C. Cisco CallManager, Cisco TFTP, and Cisco CallManager SNMP Service
- D. Cisco CallManager, Cisco TFTP, and Cisco Extension Mobility
Answer: D
Explanation:
Reference:
https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/admin/10_5_2/ccmfeat/ CUCM_BK_C3A84B33_00_cucm-feature-configuration-guide_1052/CUCM_BK_C3A84B33_00_cucm-feature- configuration-guide_chapter_011101.html#CUCM_TK_A337E035_00
NEW QUESTION # 127
ABC company has decided to implement hunt groups to help distribute calls between members. In order to implement this, administrator must configure hunt list, hunt group, and line groups on Cisco UCM. Which distribution algorithms should the administrator implement?
- A. Top Down, Round Robin, Broadcast
- B. Top Down, Circular, Broadcast
- C. Sequantial, Circular, Broadcast
- D. Top Down, Round Robin, Distribute
Answer: B
NEW QUESTION # 128

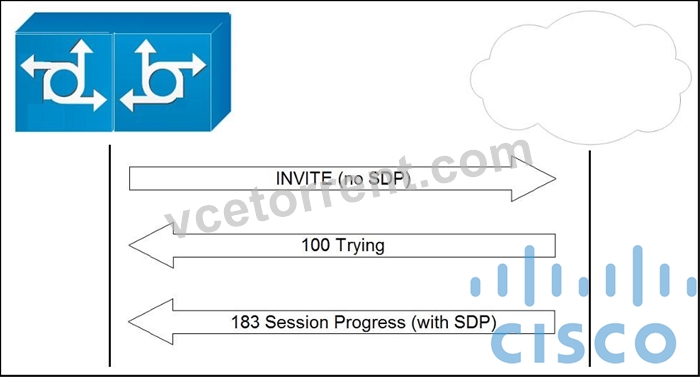

Refer to the exhibit.
An administrator is troubleshooting why users are not hearing audio when dialing long distance numbers across their Cisco Unified Border Element. The customer's carrier has a requirement that dialing long distance requires an access code to be entered. Looking at the exhibit, what two actions can be taken to correct signaling? (Choose two.)
- A. Enable Early Offer on the Cisco Unified Border Element.
- B. Enable PRACK.
- C. Enable the supplementary-service media-renegotiate command.
- D. Enable Mid-Call Signaling Consumption.
- E. Enable Media Flow Around
Answer: A,B
NEW QUESTION # 129
Refer to the exhibit.
An engineer configures Cisco Unified Border Element to connect the enterprise VoIP network with a SIP telephony provider. Calls are not working in either direction. What must be configured in the dial peer 1 to fix the issue?
- A. codec g729
- B. answer-address 555 ........
- C. session-protocol sipv2
- D. incoming called number 555.......
Answer: C
NEW QUESTION # 130
A user has a problem calling a specific PSTN number. An engineer investigates the issue on a Cisco UCM server and a Cisco Unified Border Element router, and discovers that the ITSP rejects the outbound SIP INVITE with a 422 Session Timer Too Small SIP message. What must the engineer do to resolve the issue?
- A. Increase the SIP Session Expires Timer service parameter in Cisco UCM.
- B. Increase the Min-SE SIP header timer on the appropriate Cisco Unified Border Element dial peer.
- C. Decrease the Min-SE SIP header timer on the appropriate Cisco Unified Border Element dial peer.
- D. Decrease the SIP Session Expires Timer service parameter in Cisco UCM.
Answer: B
NEW QUESTION # 131
Refer to the exhibit.

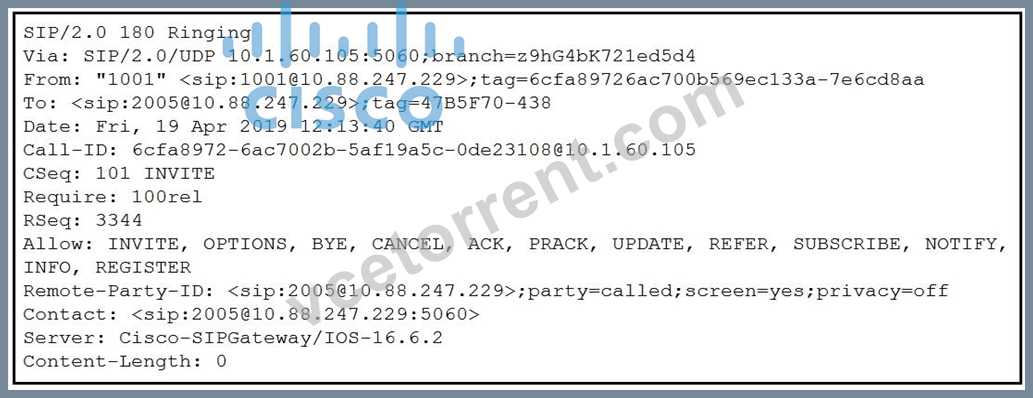

A Cisco Unified Border Element continues to send 180/183 with the required: 100rel header to Cisco UCM. and the call eventually disconnects How is the issue resolved?
- A. Disable "SIP Rel1XX Options* and 'Early Offer Support* on the SIP Profile Configuration Page m Cisco UCM.
- B. Enable *Early Offer support for voice and video calls" on the SIP Profile Configuration Page in Cisco UCM.
- C. Enable 'SIP ReI1XX Options* and -Early Offer Support" on the SIP Profile Configuration Page in Cisco UCM.
- D. Disable "Send send-receive SDP in mid-call INVITE* on the SIP Profile Configuration Page in Cisco UCM.
Answer: B
NEW QUESTION # 132

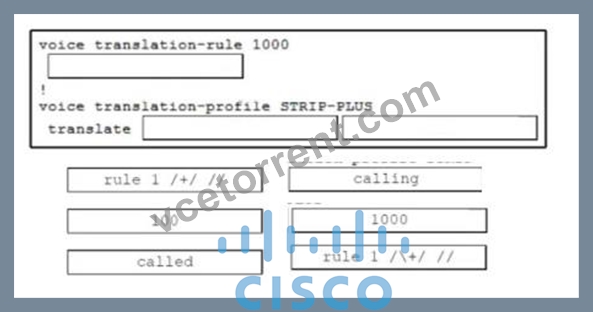

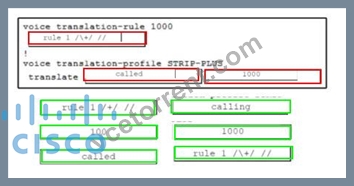

Drag and drop the commands from the bottom to the blanks in the code to implement a translation rule to allow only 11 digits to be received over a SIP trunk to a SIP provider. The Cisco UCM is currently sending calls to the Cisco Unified Border Element in E. 164 format. Not all options are used.
Answer:
Explanation:
NEW QUESTION # 133
......
